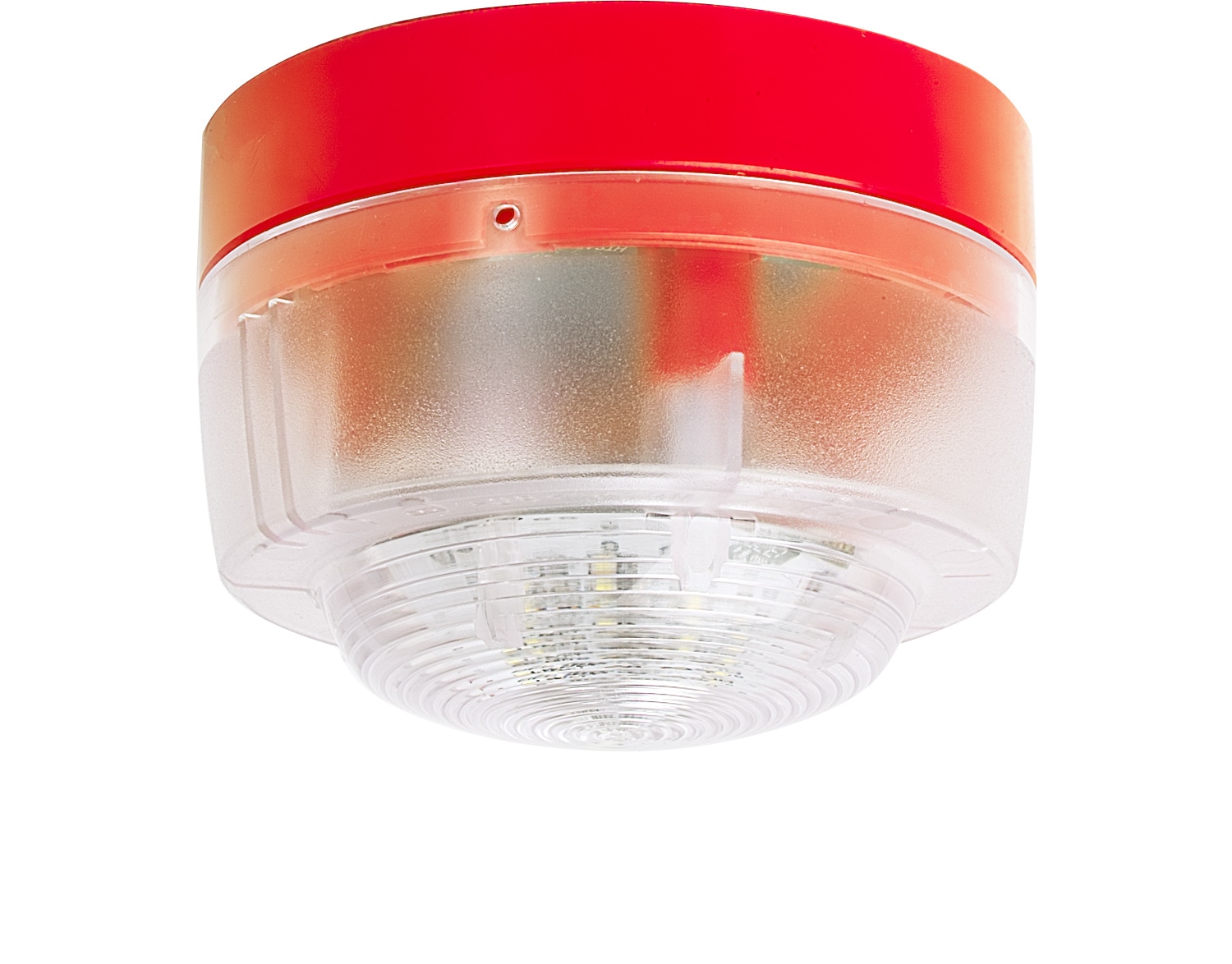

Optical alarm device with low profile base, red

CWST-RR-S5

Approval: requested

The conventional beacon features high output LEDs, advanced optics and an innovative lens design, providing outstanding Omni-directional light coverage at low current draw. Specifically designed for, and approved to meet EN54-23, the beacon delivers outstanding quality, reliability and long operational life.
  • Omni directional light coverage eliminates need for device orientation.
  • Deep base option with multiple cable entries for flexible installation.
  • Designed with full range of common fixing centres.
  • Suitable for wall and ceiling mount applications.
  • Range of installation and base options, for indoor and applications up to IP65.
  • Operates on 12V and 24V systems.
  • Approved to EN54-23, C, W categories.
  • Advanced optics ensures superior light coverage at low current draw.
  • Synchronised flash exceeds EN54-23 standard.
  • Soft start feature against power surges during system start-up.


Additional Information:

Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWR, PS188, PS189). Replacement for Part No. 766420, 766422, 766410.
